Testbeds admin section

This section list the testbeds section and its usage in the site.

View existing Testbeds

The existing Testbeds can be listed in the /admin/testbeds/testbed/ URL. From this section the details of these Testbeds can be inspected.

And the following actions can be performed:

  • View the details of the Testbeds.
  • Filter the Testbeds by: status.
  • Search the Testbeds by their contents.

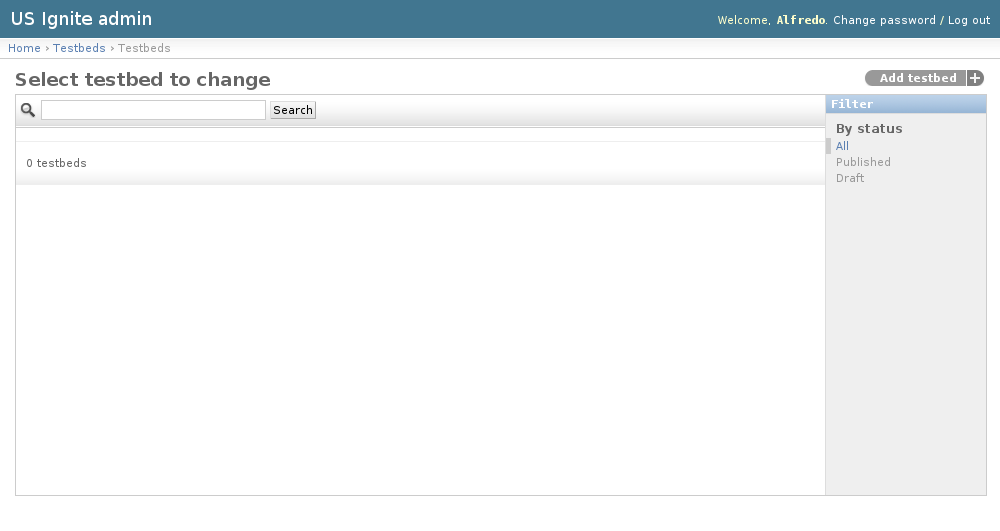

_images/admin--testbeds--testbed.png

Adding Testbeds

Testbeds can be only added by US Ignite. Adding Testbeds can be done from the /admin/testbeds/testbed/add/ URL.

The following fields are available to create Testbeds:

  • Name of the Testbed: Required.
  • Summary: Optional. Short description of the Testbed.
  • Description: Required.
  • Contact: Optional. User to be contacted for this testbed.
  • Organization: Optional. Organization associated to this testbed.
  • Website: Optional. Fully qualified URL associated to this Testbed.
  • Image: Optional. Image used for this resource.
  • Network speed: Optional.
  • Connections to other networks: Optional. Description of the conections of this testbed to other networks.
  • Willingness to experiment: Required. Desire to experiment on these testbeds.
  • Estimated passes # homes: Required. Number of estimated homes.
  • Estimated passes # business: Required. Number of estimaed business.
  • Estimated passes # community anchor: Required. Number of estimated anchors.
  • Is advanced: Optional. Determines if this network has advanced characteristics.
  • Communities: Optional. Communities associated to this testbed.
  • Applications being piloted: Optional. Applications being piloted in this testbed.
  • Features: Optional. Existing NextGen features in this testbed.
  • Position: Optional. Localization of this testbed in a map.
  • Status: Required. Publication status of this testbed in a map.
  • Tags: Optional. A comma-separated list of tags.

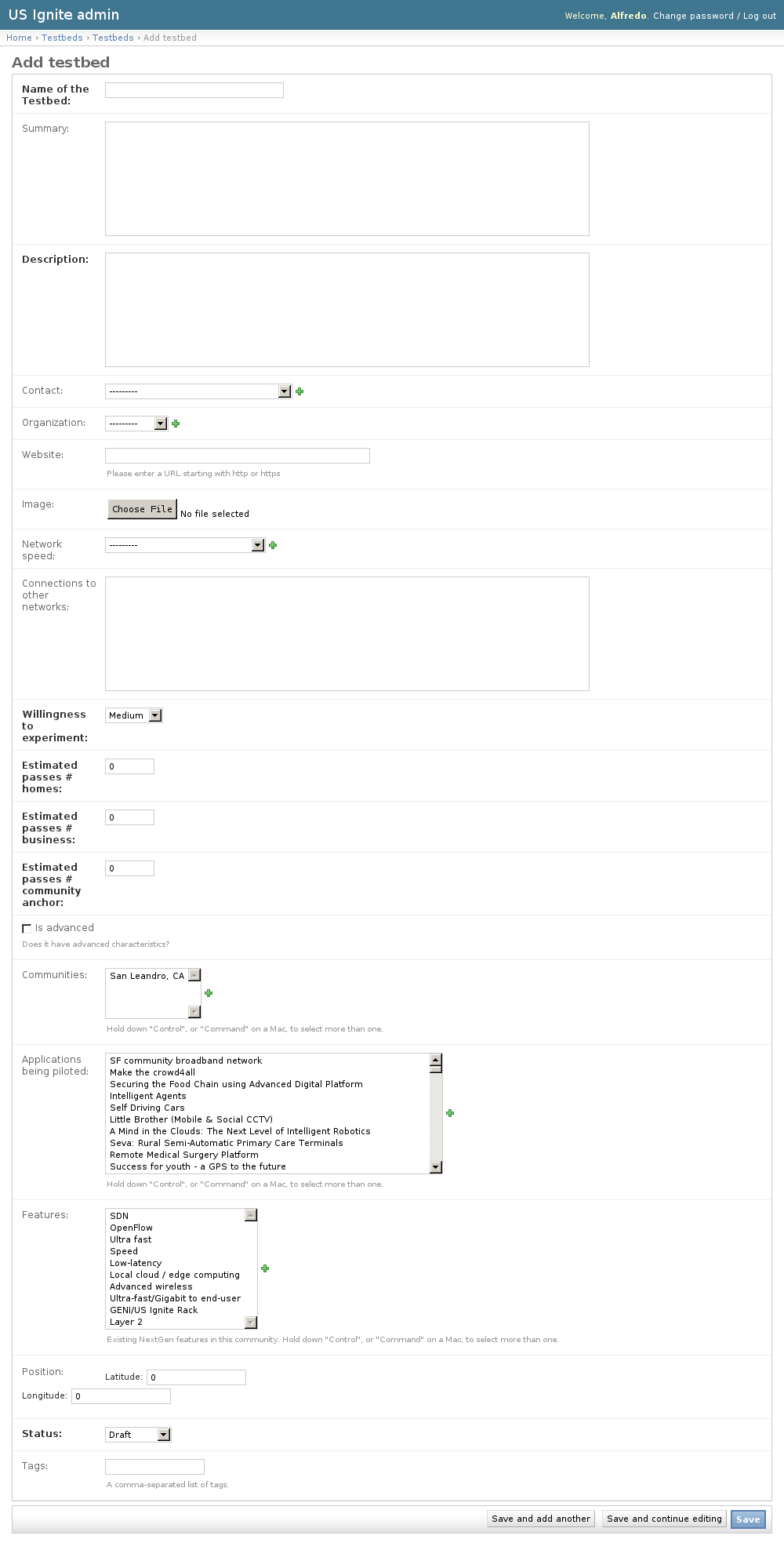

_images/admin--testbeds--testbed--add.png

Unpublishing / Removing Testbeds

In case Testbeds needs unpublishing it can be done from the detail admin view by changing the status of the Testbeds to draft or removed

Note

The Testbeds can be browsed in the /admin/testbeds/testbed/ URL.

View existing Network Speeds

The existing Network Speeds can be listed in the /admin/testbeds/networkspeed/ URL. From this section the details of these Network Speeds can be inspected.

And the following actions can be performed:

  • View the details of the Network Speeds.

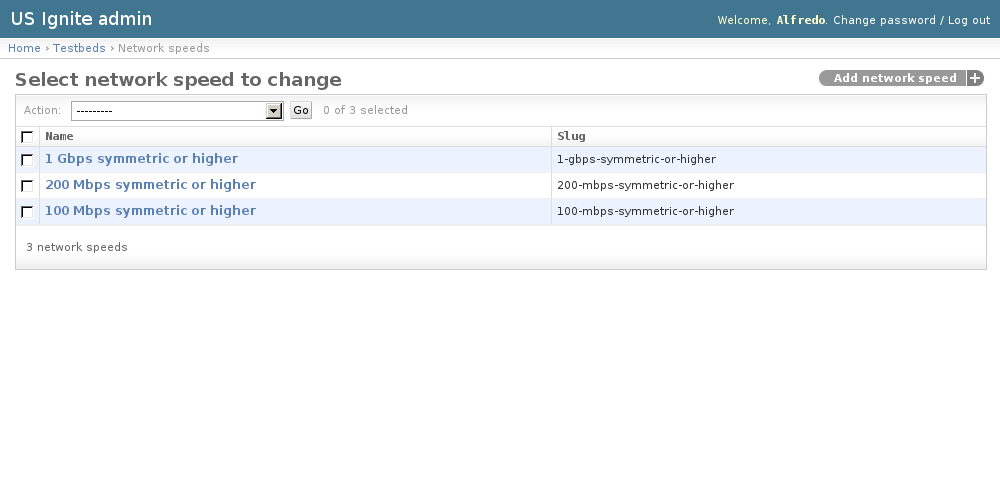

_images/admin--testbeds--networkspeed.png

Adding Network Speeds

Adding Network Speeds can be done from the /admin/testbeds/networkspeed/add/ URL.

The following fields are available to create Network Speeds:

  • Name: Required. Name used in the network speed.

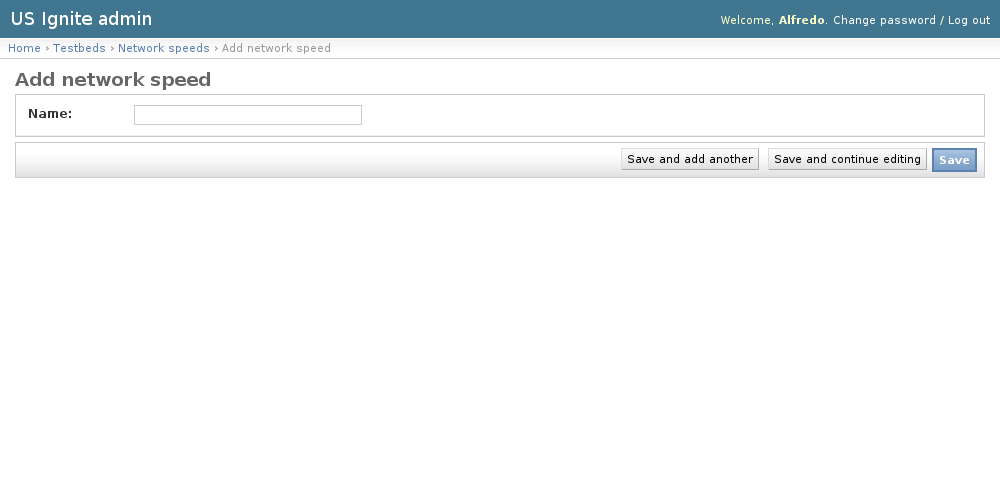

_images/admin--testbeds--networkspeed--add.png
